Scanning Electron Microscope
About

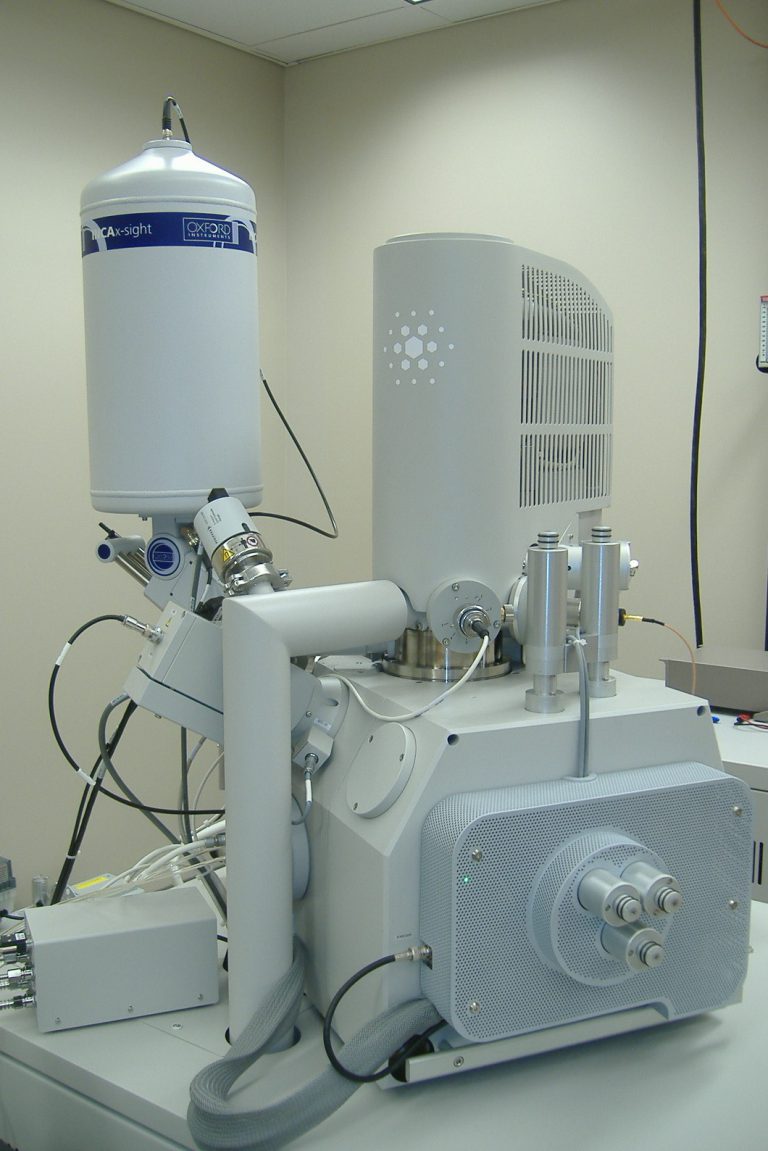

The Quanta 600F scanning electron microscope (SEM) is a versatile, high-performance instrument with three modes (high vacuum, low vacuum, and environmental) to accommodate the widest range of samples of any SEM system. The SEM system is equipped with an energy dispersive spectrometer and electron backscatter detector. In addition, the field emission gun (FEG) system contains a S/TEM detector for bright-field and dark-field sample imaging. The motorized stage has 150 mm of travel in the X and Y directions and 60 mm of travel in the Z direction. The SEM is also equipped with a Nabity lithography system to fabricate nanostructures down to sub 50 nm.
JC Nabity Lithography Systems Nanometer Pattern Generation System

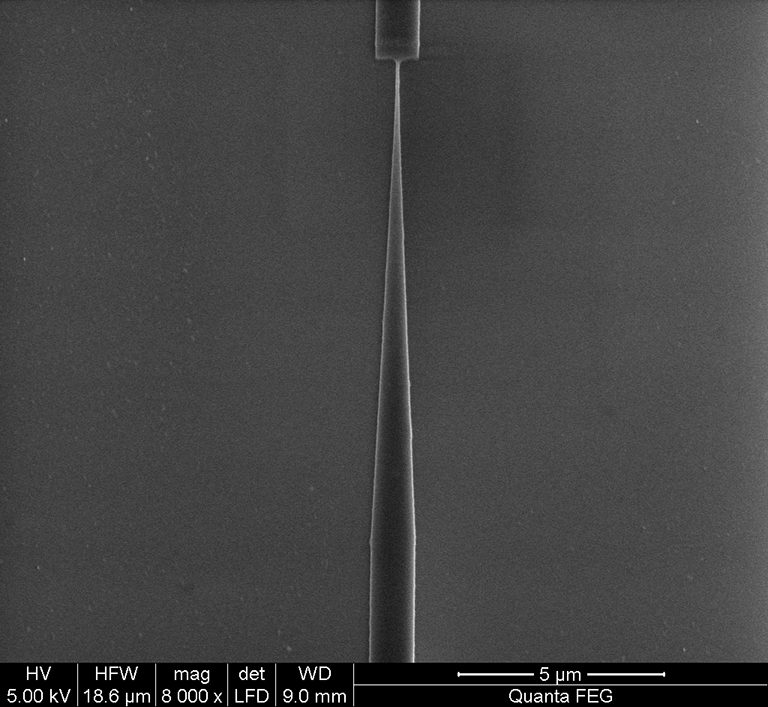

The nanometer pattern generation system (NPGS) provides a user-friendly environment for the delineation of complex structures using a commercial electron microscope, e.g., FEI Quanta 600F. The SEM combined with NPGS is a powerful lithography tool for basic research and R&D applications and can be used for the fabrication of a wide variety of devices. Pattern sizes may range from the nanometer scale up to the maximum field of view of the microscope, which can be as large as 10 mm. There are three basic steps to the pattern generation process: pattern design, parameter run file creation, and pattern writing with alignment for multilevel lithography.
Energy Dispersive Spectrometer (EDS)

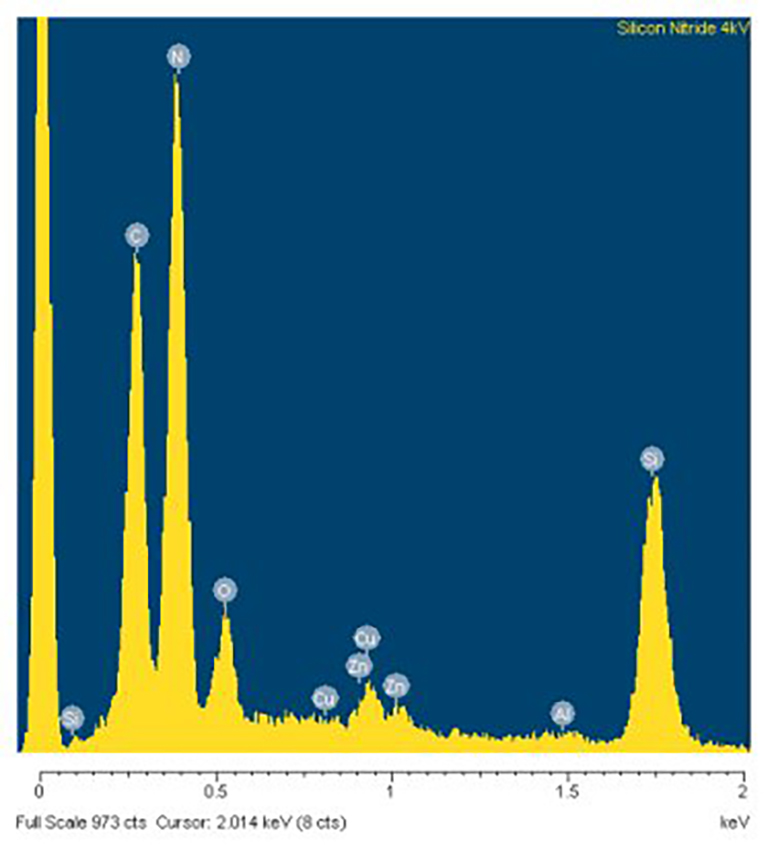

EDS is a technique used for identifying the elemental composition of the specimen, or an area of interest thereof. The specimen is bombarded with an electron beam inside the microscope column. These electrons collide with the specimen atoms’ own electrons, knocking some of them off in the process. Positions vacated by ejected inner shell electrons are occupied by a higher energy electron from an outer shell that has given up some of its energy by emitting an X-ray. The amount of energy released depends on which shell it is transferring from / to. The atom of every element releases X-rays with unique amounts of energy, identifying it. The output of an EDS analysis is an EDS spectrum, which is just a plot of how frequently an X-ray is received for each energy level. The higher the peak in the spectrum, the more concentrated the element is in the specimen.
Fees
SEM usage is $55/hour. There will be no charges for things such as using the lithography, use of the EDS, or any other equipment associated with the SEM. We also expect that users will provide their own “consumables” such as carbon tape, support plugs for sample mounting, gloves, etc. as the facility has limited resources of the above items. The users must log into the log book and the individual Excel sheet prior to using the SEM for billing purposes. The log book comments will help in assessing a possible malfunction which may occur during the user’s time.
Research Examples

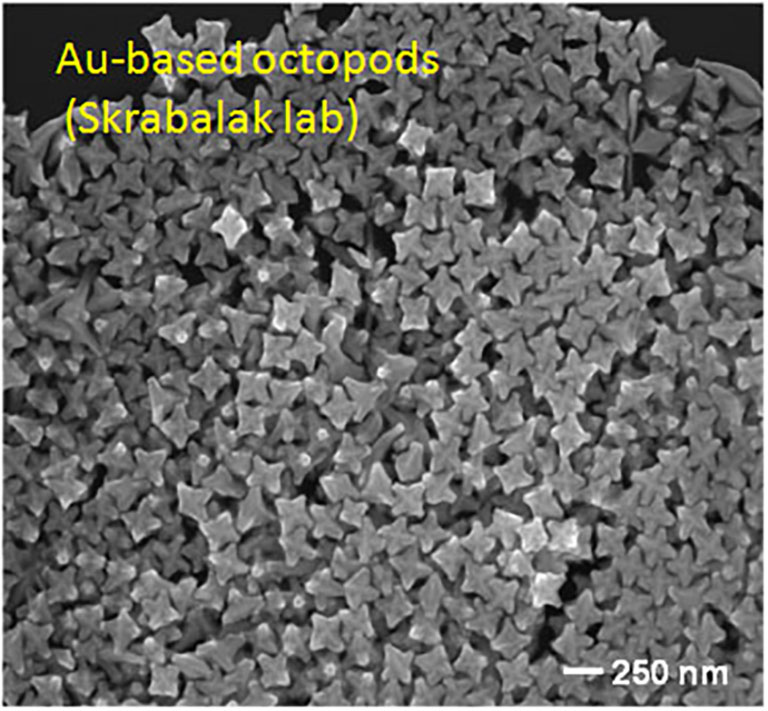

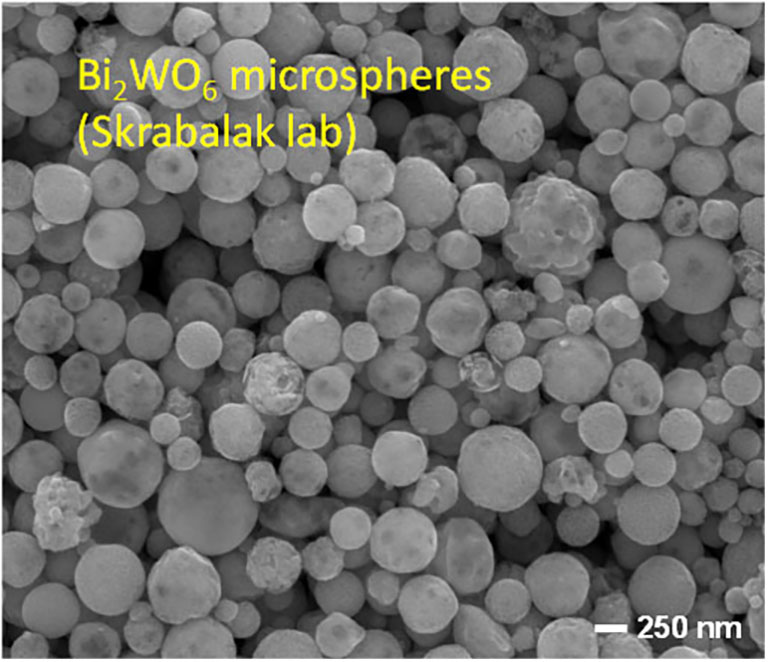

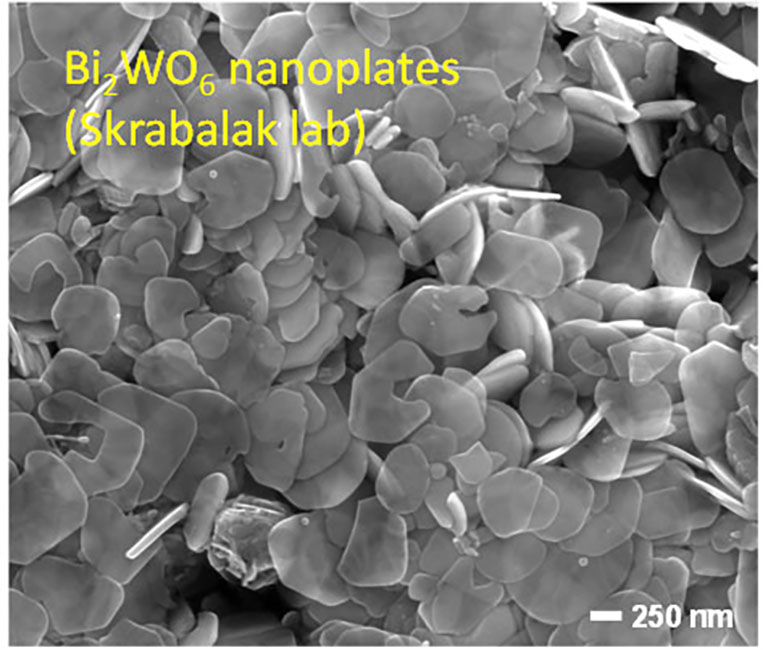

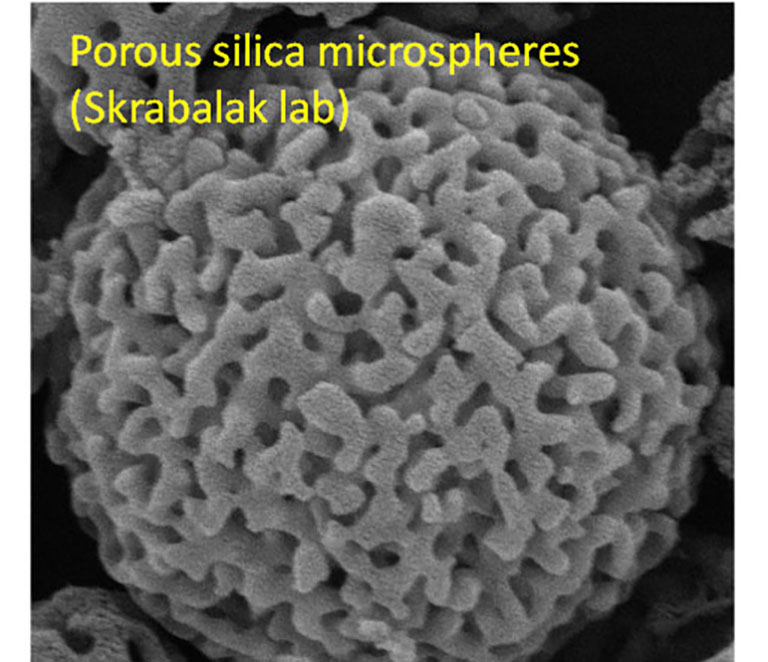

Documents
Frequently Asked Questions
Please make a note of it in the log book on the front page and contact the director about the problem which you experienced.
The beam blanker is probably on. To turn off the beam blanker go to the lithography computer (far right computer) and open NPGS. Go to commands —> Set Blanker —> Beam on.
Restart the SEM computer, wait until it boots back up, and start up the SEM according to the protocal. Contact the director.
Contact the director to have that person added to the SEM. Training should be done by people in your lab that have been trained by the director. If no one in the lab was trained by the director, then you must contact the director for training.
